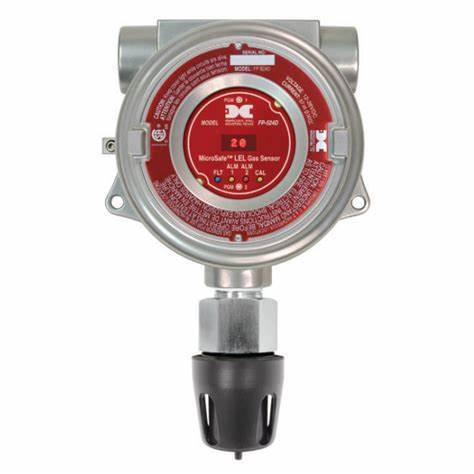

Detcon 985-525420-100 FP-524D LEL Catalytic Bead Gas Detector
Detcon Model FP-524D is a “Smart" gas detection sensor designed to detect and monitor combustible gas in air over the range of 0-100% LEL (lower explosive limit) using matched-pair catalytic bead technology.
Model FP-524D features Detcon's MicroSafeTM intelligent electronics, non-intrusive operator interface and comprehensive fault diagnostics. The sensor transmitter features an advanced universal design that fits all existing Detcon matched-pair catalytic bead sensors dating back more than 20 years. The sensor assembly includes the detector in stainless steel housing, a base connector board, an explosion proof enclosure (available in aluminum or stainless steel), a plug-in control transmitter circuit, and a splashguard with integral cal port. The packaging is Explosion Proof (Class I, Div. 1 Groups B, C, D).
Model FP-524D is equipped with a standard analog 4-20 mA current signal equivalent to the sensor range of detection, one-man remote calibration, self-adjusting zero and span, and LED indicators for fault and calibration status.
A HART communications option is also available. Detcon’s combustible gas sensor has an infinite shelf life and is supported by a 2-year warranty
Features Failsafe User-Friendly Interface
Certified to both CSA and ISA performance standards
CSA-US approved for Class I, Division 1, Groups B, C, & D
Transmitter design fits all existing Detcon Catalytic Bead Sensors dating back 20 years
Simple menu driven calibration - less than 3 minutes
LED display and LED indicators for FAULT and CAL status
Plug-in field-replaceable transmitter
Long sensor life expectancy: averaging longer than five years in harsh offshore drilling/production environments
High resistance to poisons such as sulfides, chlorides, silicon-based contaminants etc.
Low power consumption (less than 3.5 watts versus 8+ watts on competitive brands)
Extensive Fault diagnostics
Applications
Oil and Gas Drilling Rigs
Oil and Gas Production Sites
Offshore Production Platforms
FPSOs
LNG/CNG Plants
Refining and Petrochemical
Pulp and Paper Mills
Waste Water Treatment Plants
