1000 MB/S Allen Bradley 1756 Module ControlLogix Redundancy Module

Allen-Bradley 1756-RM2 is a ControlLogix Redundancy Module

Allen-Bradley 1756-RM2 is a ControlLogix Redundancy Module. This module enables Controller Redundancy by pairing with another 1756-RM2 from the other ControlLogix chassis. It supports up to 1000 Mbps synchronization speed and Controller switchover of 20 ms. This module is compatible with ControlLogix Controllers 5560 and 5570.

Technical specifications

Manufacturer Rockwell Automation

Brand Allen-Bradley

Part Number/Catalog No. 1756-RM2

Series ControlLogix

Module Type Enhanced Redundancy Module

Connector LC Type

Cable Type 8.5/125 micron single-mode fiber-optic cable

Connector Cables 1756-RMC1, 1 m (3.28 ft); 1756-RMC3, 3 m (9.84 ft);1756-RMC10, 10 m (32.81 ft)

Supported Controllers Logix 5560 /Logix 5570

Length 10 kilometers

Wavelength 1310 Newton Meters

Transmission 1000 MB per Second

Channels 1

UPC 884951800434

Wire Size 20 AWG

Dimensions 5.51 x 4.41 x 5.71 inches

Operating Temperature 32-140 Fahrenheit (0-60 Celsius)

Enclosure None

1000 MB/s allen bradley 1756 rm2

LC 1756 redundancy module

ControlLogix Redundancy Module

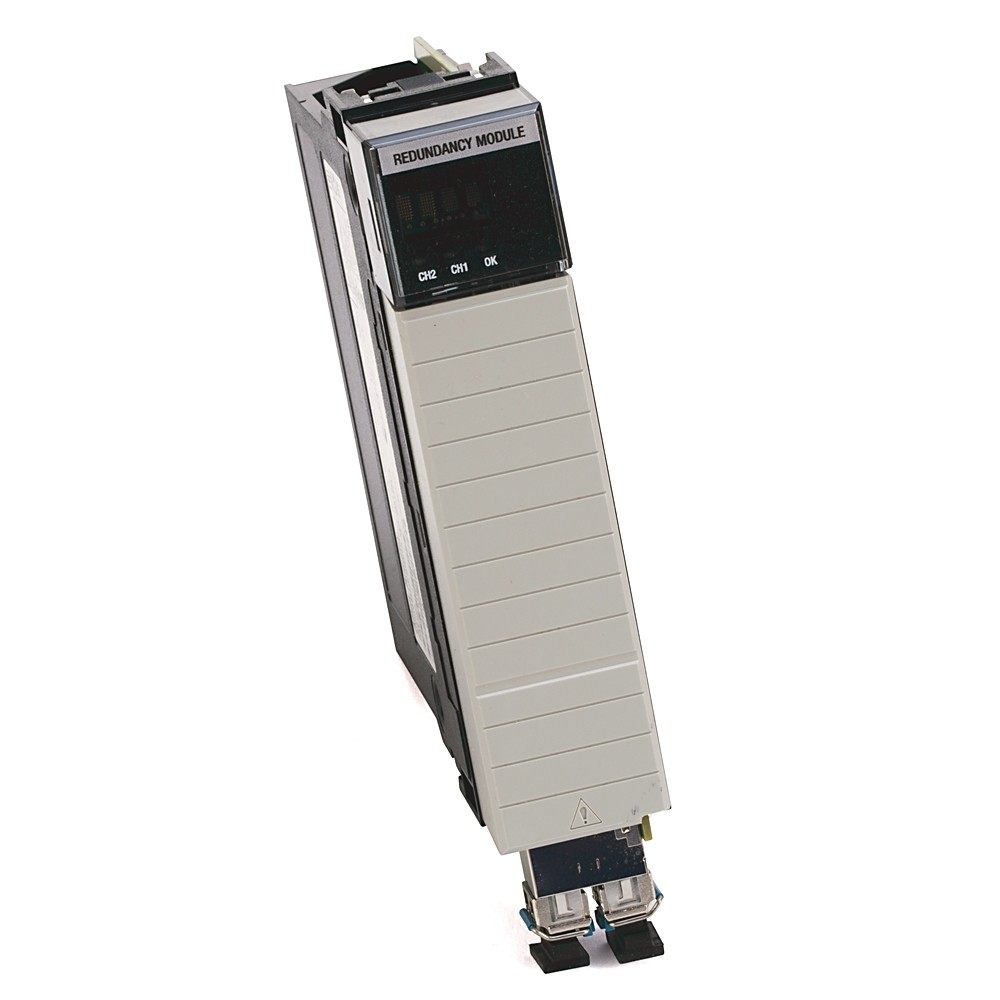

1000 MB/S Allen Bradley 1756 Module ControlLogix Redundancy Module Images
